The traditional development of medical devices has long been a time-intensive, cost-heavy process requiring extensive machining, casting, and testing before a product ever touches a patient. But in recent years, a set of transformative technologies—rapid prototyping and additive manufacturing—have radically reshaped this landscape. These techniques, particularly 3D printing, enable engineers and clinicians to move from concept to a functional physical object with unprecedented speed and precision.
In the medical world, where time and personalization can directly impact patient outcomes, rapid prototyping isn’t just a manufacturing trend—it’s a clinical revolution. This article explores how these technologies work, the techniques involved, and their powerful applications in healthcare today.
1. What is Rapid Prototyping?
At its core, rapid prototyping refers to a group of manufacturing techniques that quickly create three-dimensional (3D) physical models based on digital designs. Unlike traditional subtractive methods—where a block of material is carved down to a desired shape—rapid prototyping employs additive methods. These involve constructing an object layer by layer from scratch using powders, plastics, or metals.
This shift from subtractive to additive manufacturing allows for faster iterations, complex geometries, and greater flexibility in design, all of which are particularly valuable in the healthcare sector where customized and functional solutions are often needed urgently.
2. The Digital Workflow: From CAD to Physical Model
The process begins with the creation of a 3D digital design using computer-aided design (CAD) software like SolidWorks. These designs can include precise dimensions and details, mimicking the geometry of complex parts—such as joints, implants, or surgical instruments.
Once a CAD model is ready, it is converted into a Standard Tessellation Language (STL) file—a format that breaks the surface of the model into a series of triangles. The STL file is then “sliced” into thin cross-sectional layers. These slices guide the 3D printer or prototyping machine in building the object one layer at a time, essentially transforming a virtual design into a real-world item.
3. A Game-Changer in Clinical Settings

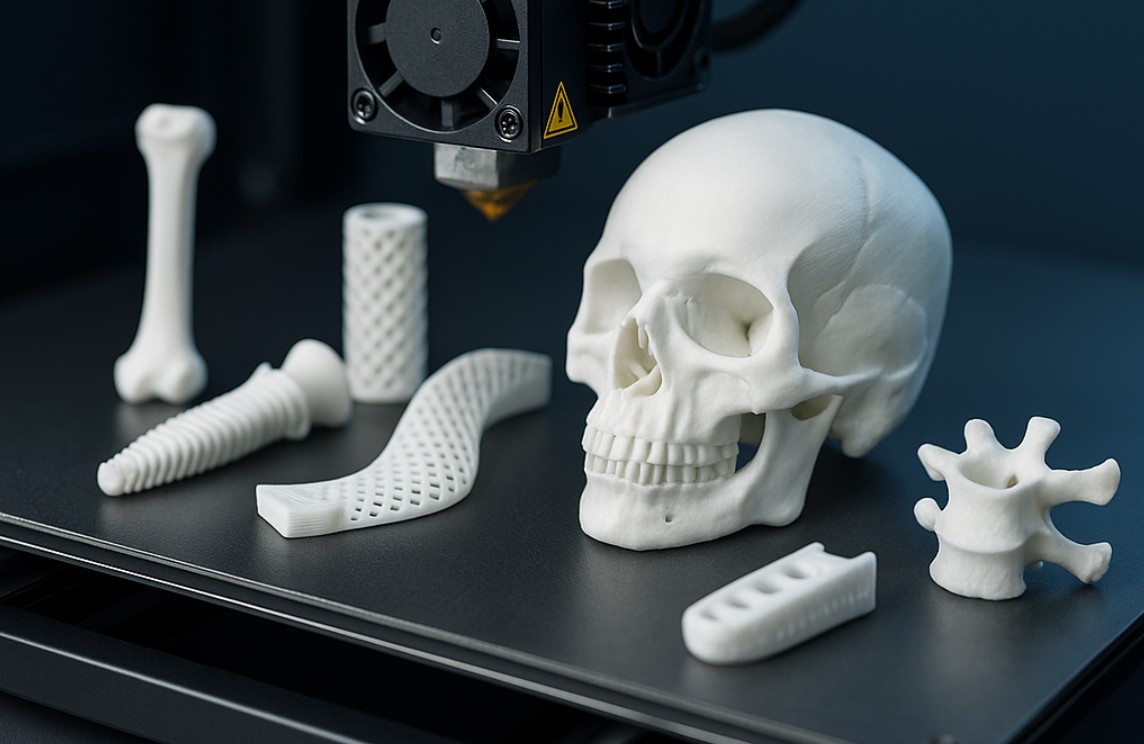

One of the most groundbreaking applications of rapid prototyping in medicine is its ability to convert medical imaging—like CT or MRI scans—into accurate 3D models of a patient’s anatomy. These models allow surgeons to:
- Rehearse complex procedures before actual surgery
- Customize implants and prosthetics to the patient’s exact specifications
- Improve communication with patients and surgical teams through tangible visual aids
Imagine a neurosurgeon preparing for a delicate cranial surgery using a 3D-printed model of the patient’s skull, generated from scan data. This model becomes an invaluable tool—not just for planning, but for designing tailored implants that fit perfectly on the first attempt.
4. Techniques in Additive Manufacturing
There are several additive manufacturing technologies used in the medical field, each suited to different materials and purposes. Two of the most prominent techniques covered are:
a. Selective Laser Sintering (SLS)
SLS is widely used for fabricating metal parts and is ideal for producing medical components from materials like steel, titanium alloys, and composites. Here’s how it works:
- A thin layer of powdered material is spread over a build platform.
- A high-powered laser selectively fuses the powder based on the cross-sectional design.
- The platform then lowers slightly, and another layer of powder is added.
- The process repeats, building the object layer by layer.
Key advantages of SLS include:
- Ability to produce intricate and mechanically robust components
- No need for support structures due to self-sustaining powder beds
- High productivity due to batch processing of multiple parts at once
This technique is particularly useful in orthopedics and implant design, where strength, durability, and biocompatibility are paramount.
b. Binder Jetting (Inkjet 3D Printing)
Binder jetting works similarly to an inkjet printer, but instead of ink, it deposits liquid binder onto a powder bed. Here’s a breakdown:
- A print head selectively deposits the binder on a layer of powder.
- A new layer of powder is added on top.
- The layers adhere together, forming a 3D object.
Because binder jetting doesn’t involve heat during fabrication, it requires a post-processing phase to strengthen the model. This technique is well-suited for producing plastic or ceramic parts and is often used for creating molds, models, and some prosthetics.
5. Materials in Medical 3D Printing
A wide range of materials can be used in rapid prototyping for healthcare applications:
- Metals: Titanium alloys, stainless steel—suitable for implants and surgical instruments.
- Polymers: Nylon, polystyrene, polyetheretherketone (PEEK)—used for lightweight and durable parts.
- Ceramics and Composites: Applied in dental and orthopedic uses.
These materials are selected based on required characteristics such as strength, biocompatibility, flexibility, and sterilization capability.
6. From Models to Medical Devices
Initially, rapid prototyping was confined to creating scale models and visual aids. However, advancements in material science and printer resolution have allowed manufacturers to fabricate functional, clinical-grade devices.
As of 2015, the U.S. Food and Drug Administration (FDA) had already approved over 85 3D-printed medical devices, including:
- Orthopedic implants like hip and knee replacements
- Cranial and facial reconstruction implants
- Customized surgical instruments
- Dental restorations such as crowns and bridges
- External prosthetics for limb loss
This regulatory progress highlights the maturity of additive manufacturing in clinical contexts.
7. Personalization: The Real Disruptor
Perhaps the most transformative aspect of rapid prototyping is its potential for personalized medicine. Since every human body is unique, standard off-the-shelf implants often fall short in delivering optimal outcomes. With rapid prototyping:
- Implants can be tailored to the patient’s exact anatomical structure.
- Surgical tools can be customized for specific procedures.
- Prosthetics can match an individual’s mobility needs and aesthetic preferences.
This level of customization was unimaginable a decade ago with traditional manufacturing methods.
8. Advantages and Limitations
Advantages:
- Speed: Concept-to-object turnaround is drastically reduced.
- Complexity: Enables production of intricate geometries not possible with casting or machining.
- Cost-efficiency: Reduces the cost of iterations and material waste.
- Versatility: Accommodates a broad range of medical applications from prototyping to patient-ready devices.
Limitations:
- High upfront cost: Equipment and materials can be expensive.
- Production speed for large batches: Not as fast as injection molding for high-volume manufacturing.
- Regulatory and validation hurdles: Each device must pass stringent safety and efficacy tests.
Despite these, the benefits often outweigh the drawbacks—especially when tailored, one-off solutions are needed.
9. Future Outlook: Smart and Bio-Compatible Printing
The future of rapid prototyping in medicine is poised to become even more transformative with developments such as:
- Bioprinting: Printing with living cells to produce tissues and eventually, entire organs.
- Embedded sensors: Creating smart implants that monitor healing or detect infection.
- AI-driven design: Using machine learning to optimize device geometry for patient outcomes.
As research expands and regulations evolve, we may soon see fully customized, intelligent implants that not only fit perfectly but actively assist in patient recovery.
Conclusion
Rapid prototyping and additive manufacturing are redefining what’s possible in medical device innovation. From faster development cycles to hyper-personalized solutions, these technologies offer a future where medical devices are not just tools, but tailored extensions of individual healthcare needs.
In the evolving landscape of healthcare, where precision, personalization, and speed are critical, rapid prototyping stands at the intersection of engineering innovation and human well-being. It’s not just about printing objects—it’s about crafting better outcomes.
