    Robotic waterjet cutting: How is it powering the next generation of robotic manufacturing

    In the era of autonomous manufacturing, speed and precision aren’t just goals—they’re imperatives. Modern factories, especially those operating in aerospace, defense, and high-mix manufacturing, demand machines that can cut diverse materials with near-perfect accuracy and minimal downtime.

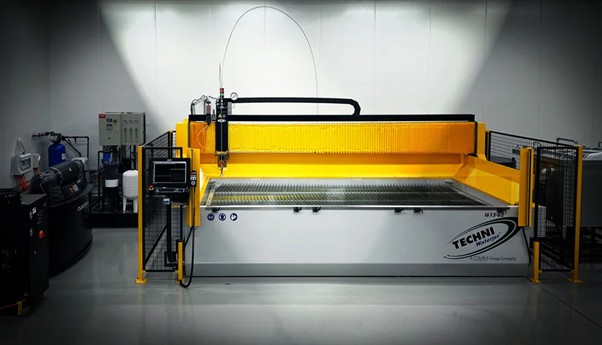

    Long prized for its cold, clean slicing of complex materials, waterjet technology is finding new life in robotic workflows, where accuracy, environmental cleanliness, and versatility are must-haves. A well-known example is the TECHNI Waterjet cutting machine, which delivers the precision and reliability needed to support autonomous manufacturing cells. More than just a legacy tool, waterjets are evolving into the perfect complement for robotic arms and intelligent gantries, bridging the gap between raw material and refined function.

    That’s where robotic waterjet cutting comes in. This technology, once confined to specialized machining shops, is now transforming automated workflows—offering ultra-precise, cold cutting with no thermal distortion. Whether slicing through titanium or foam, waterjets are fast becoming a cornerstone of adaptive, lights-out manufacturing.

    - Advertisement -

    What Is Robotic Waterjet Cutting?

    Waterjet cutting uses a high-pressure stream of water, often mixed with abrasive particles, to erode material with pinpoint control. When paired with a robotic arm or gantry system, it allows for automated, multi-axis cutting that maintains tight tolerances across a wide range of materials.

    Unlike lasers or plasma cutters, waterjets don’t generate heat, preserving the structural integrity of parts and eliminating the need for secondary finishing in most cases.

    Why Waterjets Are Ideal for Robotic Manufacturing

    Here’s what makes waterjets stand out in automated settings:

    - Advertisement -
    • Cold cutting – No heat-affected zone (HAZ)
    • Material versatility – Cuts metal, plastic, composites, glass, rubber, and more
    • Minimal tool wear – Greatly reduces maintenance cycles
    • Precision – Tolerances as tight as ±0.1 mm
    • No post-processing – Smooth, burr-free edges
    • Eco-friendly – No fumes, slag, or molten residue
    • Quick adaptability – Minimal reprogramming needed for material changeovers

    How Waterjet Cutting Works (Explained Simply)

    Waterjet cutting relies on kinetic energy instead of heat:

    1. Water pressurization — Pumps create pressure up to 90,000 psi
    2. Abrasive mixing — Garnet or other abrasive is added for harder materials
    3. Nozzle acceleration — Water and abrasive are focused through a small orifice
    4. Material interaction — High-speed erosion cuts through target material
    5. Robotic motion control — A multi-axis arm or gantry follows precise toolpaths

    Unlike thermal methods, waterjet erosion results in clean, cool cuts with no molecular damage.

    Types of Waterjet Systems Used in Robotics

    Type Best For Pros Cons
    Pure Waterjet Soft materials (rubber, foam) Clean operation, no abrasive Not effective on hard materials
    Abrasive Waterjet Metals, composites, ceramics Strong, precise, cuts almost anything Requires abrasive management

    Components of a Robotic Waterjet Setup

    A typical robotic waterjet cell includes:

    - Advertisement -
    • High-pressure pump
    • Accumulator for pressure regulation
    • Cutting head/nozzle
    • Abrasive mixing chamber
    • Robotic arm or CNC gantry
    • Abrasive feed system
    • Material fixture or conveyor
    • Water and abrasive recovery systems
    • Enclosure and safety interlocks

    Each component must work in sync to ensure clean, repeatable cuts in a fully automated workflow.

    Accuracy and Performance Metrics

    Waterjet cutters are highly accurate for most robotic applications:

    • Tolerances: ±0.1 mm to ±0.25 mm
    • Kerf width: Typically ~0.76 mm (0.03 in)
    • No HAZ: Preserves material properties
    • Edge quality: No burrs, minimal taper

    Common in industries where post-machining must be avoided—like aerospace composites and medical instruments.

    Materials You Can Cut with Robotic Waterjets

    Material Type Examples Benefits of Waterjet Cutting
    Metals Stainless steel, aluminum, titanium No thermal distortion, edge integrity preserved
    Composites CFRP, GFRP No delamination—ideal for aerospace
    Plastics HDPE, ABS, polycarbonate Avoids melting or fume generation
    Glass/Stone Laminated glass, granite Clean cuts without cracking or chipping
    Foam/Rubber Gaskets, insulation Perfect for pure waterjets, no warping

    Integrating Waterjets into Robotic Workflows

    Waterjet cutting can be integrated in several ways:

    • Robotic arm holds nozzle: For multi-axis precision and 3D contours
    • Gantry system: Material is fixed while the head moves in XYZ
    • Hybrid cells: AI-based path planning adjusts toolpaths in real time

    Use Case Example:
    In aerospace, robotic waterjets are used to trim carbon-fiber panels with variable contours—achieving tolerances within ±0.1 mm without secondary machining.

    Key Parameters to Monitor

    To maintain consistency in robotic waterjet cutting:

    • Water pressure: 50,000–90,000 psi
    • Nozzle size: Impacts kerf and cut speed
    • Abrasive flow: Typically 0.5–1.5 lb/min
    • Traverse speed: Affects edge smoothness and cycle time
    • Stand-off distance: Impacts cut taper
    • Material characteristics: Dictates feed rate and pressure

    Limitations to Keep in Mind

    • Slower than lasers on thin metals
    • Abrasive disposal and recycling needed
    • Tolerances not as tight as EDM
    • Larger footprint compared to compact cutters
    • Energy-intensive under high duty cycles

    Not always the fastest method—but usually the most flexible and material-agnostic.

    Design Considerations for Robotic Waterjet Cutting

    To optimize parts for robotic waterjet systems:

    • Avoid narrow internal features (< 0.76 mm)
    • Use lead-ins for clean piercing
    • Fixture parts securely, especially 3D profiles
    • Plan for taper compensation in thick sections
    • Optimize nesting for material savings

    Safety in Automated Waterjet Operations

    Automation doesn’t eliminate risk. Key precautions include:

    • Operator enclosures with interlocks
    • Abrasive handling protocols
    • Noise dampening (>85 dB soundproofing)
    • Water pressure monitoring
    • Emergency stop tied to robot controller
    • Routine maintenance of high-wear components

    Industries Driving Robotic Waterjet Adoption

    • Aerospace – Trimming composites, metals
    • Automotive – Chassis brackets, interior panels
    • Medical – Prosthetics, surgical-grade tools
    • Defense – Armor plating, stealth materials
    • Electronics – Multilayer housings
    • Construction – Architectural glass and steel
    • Shipbuilding – Structural bulkheads
    • Energy – Seals, gaskets, insulation panels

    Common Mistakes and How to Avoid Them

    • Using the wrong abrasive or flow rate
    • Poor fixturing for complex geometries
    • Overcomplicated toolpaths that reduce efficiency
    • No lead-ins causing blowouts
    • Skipping maintenance, leading to nozzle wear

    Solution: Use simulation tools, audit routines, and proper training.

    Waterjet vs. Other Cutting Technologies

    Method Speed Heat Material Flexibility Tolerance
    Waterjet Medium ✅ Broad ±0.1–0.25 mm
    Laser Fast ❌ Limited ±0.05–0.1 mm
    Plasma Medium ❌ Metals only ±0.3–0.5 mm
    EDM Slow ❌ Conductive only ±0.002–0.01 mm
    Ultrasonic Niche ✅ Soft/brittle ±0.1–0.3 mm

    Conclusion

    Waterjet cutting isn’t just a niche technique—it’s a flexible, scalable enabler for next-generation robotic manufacturing. With no heat distortion, unmatched material compatibility, and minimal secondary work, waterjets are redefining what’s possible in automated workflows.

    As robotic systems evolve, expect waterjet-equipped cells to become standard in any factory where cleanliness, design freedom, and accuracy can’t be compromised.

    Thinking about upgrading your automation? Waterjets may be the sharpest investment you make.

    Frequently Asked Questions (FAQ)

    Q: Can waterjets be used for 3D contour cuts in robotics?
    A: Yes. Multi-axis robotic arms can adjust nozzle angles for precise cuts on 3D surfaces.

    Q: Is waterjet cutting better than laser for automation?
    A: It depends. Waterjets are more versatile and cleaner, while lasers are faster on thin metals.

    Q: How often do nozzles need replacement?
    A: Typically every 40–80 hours, depending on material and pressure used.
