In the modern landscape of automation, robot arms are omnipresent—from assembling smartphones to welding automobile frames. However, behind every motion lies an invisible yet critical factor: the work envelope. This invisible boundary defines where a robot can reach, move, and perform its tasks. It’s a fundamental design constraint and a key determinant of a robot’s utility and safety in industrial environments.
Understanding robot work envelopes is crucial not only for engineers and integrators designing automated systems, but also for manufacturers looking to optimize space, speed, and safety. This article dives deep into the mechanics of work envelopes—how they’re defined, what affects them, and why they’re so critical to robotic performance.
1. What Is a Robot’s Work Envelope?
At its core, a robot’s work envelope (also known as a reach envelope or workspace) is the three-dimensional space within which the robot’s end effector (like a gripper or welding torch) can operate. This space is defined by the physical limits of the robot’s joints and links.
Think of the work envelope as the invisible boundary that maps out where the robot can physically go and perform a task. Its size and shape depend on a combination of design elements:
- Joint Range: The extent to which each joint—linear or rotational—can move.
- Arm Structure: The lengths of the robot’s body, arm, and wrist components.
- Joint Type: Whether the robot uses revolute (rotational) or prismatic (linear) joints.
Changing any of these factors will alter the robot’s reachability and motion capabilities, making the work envelope an adaptable concept based on task requirements.
2. Cartesian Robots: The Rectangular Workspace
Let’s start with the most straightforward type of robot—the Cartesian robot, also known as a linear robot. These machines operate in three orthogonal (X, Y, Z) axes using linear actuators.
Use Case Example:
Imagine a packaging line where boxes need to be picked up from a conveyor belt and placed in a nearby bin. The required movement occurs strictly in straight lines across three dimensions, forming a rectangular prism-shaped work envelope.
Because Cartesian robots move linearly without any joint rotation, their work envelopes are easy to visualize and free of “dead zones” (areas the robot can’t reach due to mechanical limitations). Their simplicity, precision, and predictability make them ideal for CNC operations, 3D printing, and material handling in structured environments.
3. Operating Envelope: A Safety Redefinition
The operating envelope is a subset of the work envelope defined by safety constraints. While the robot can move throughout its full work envelope, it’s often restricted for safety or operational reasons.
Practical Scenario:
A robot previously used for material handling is reconfigured to perform metal cutting—an inherently dangerous task. To protect human operators, engineers restrict the robot’s movement in the Y-direction using electromechanical limit switches, creating a safe operational zone.
In this case, the operating envelope becomes a modified, safer region within the full work envelope. Understanding and designing for both envelopes is crucial in collaborative robotics and any environment with human-robot interaction.
4. Cylindrical Robots: Adding Rotation to Reach
As tasks get more complex, robots need to reach around obstacles or machines—this is where cylindrical robots come into play.
Design Modification:
To convert a Cartesian robot into a cylindrical robot, one linear joint is replaced with a rotary joint, enabling 360-degree movement around a vertical axis. This expands the work envelope into a cylindrical shape, ideal for tasks involving repetitive transfers between stations arranged in a circular pattern.
Dead Zone Alert:
However, this design introduces a dead zone at the center—an area the robot cannot reach because the arm cannot retract beyond the central axis. This design limitation must be accounted for when planning workspace layouts, particularly in high-precision environments.
5. Spherical Robots: Expanding into Angular Complexity
When tasks require reaching at complex angles—such as welding contoured surfaces or spray-painting irregular objects—a robot with a spherical work envelope is better suited.
Design Upgrade:
By replacing another linear joint with a second rotary joint, engineers create a robot with two rotational and one linear degree of freedom. This setup enables the robot’s end effector to move through a partial spherical volume.
This configuration significantly enhances the robot’s flexibility, allowing it to access more angles compared to its cylindrical counterpart. However, it still retains a dead zone, though smaller in size.
6. Fully Spherical Robots: Mimicking the Human Arm

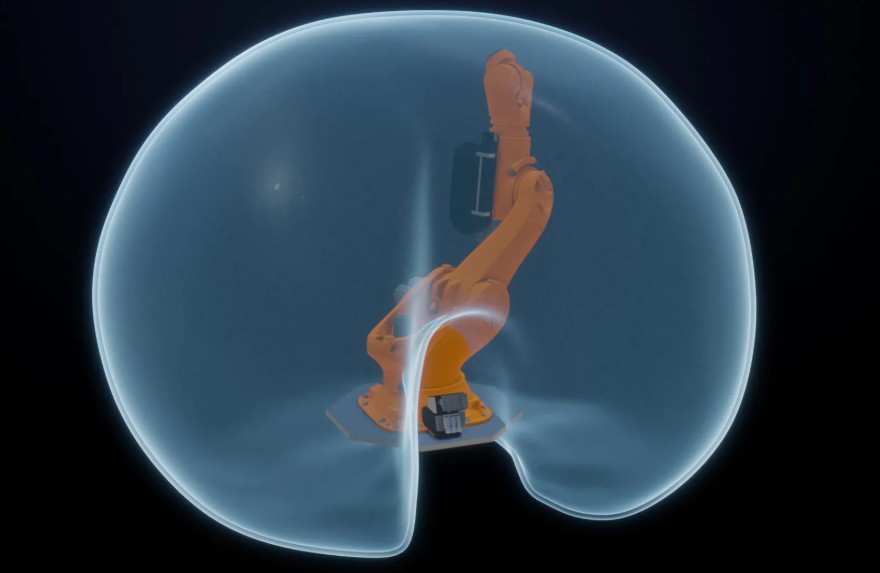

Taking the design further, replacing all linear joints with rotational ones gives rise to the revolute coordinate robot—a configuration that closely resembles a human arm.
Work Envelope Discovery:
To deduce this robot’s work envelope:
- Freeze the base (Z-axis) rotation and observe the 2D sweep generated by the two rotating arms. When fully extended, the end effector traces a wide arc—up to 280 degrees. However, due to physical interference (e.g., the lower arm bumping into the robot’s body), this arc has a minimum limit too.
- Revolve this 2D arc 360 degrees around the Z-axis, creating a nearly spherical work envelope.
Application:
This type of robot is widely used in automotive assembly lines, welding, and spray painting, where flexibility, range of motion, and reachability are critical.
7. The Dead Zone Dilemma
One recurring theme across all but Cartesian robots is the dead zone—a region in the robot’s center or structure that it cannot reach due to its mechanical limitations. While Cartesian robots avoid this by design, cylindrical, spherical, and revolute-arm robots must be engineered around this constraint.
Dead zones can lead to inefficient work planning, missed spots during processes like painting or inspection, or even require multiple robots to cover a single task area. Smart layout planning, tool positioning, and design adjustments are essential to minimize the impact of dead zones.
8. Choosing the Right Work Envelope for the Job
Selecting a robot configuration isn’t just a matter of picking the latest tech—it’s about choosing the right tool for the right task. Each type of work envelope offers distinct advantages:
| Robot Type | Work Envelope Shape | Best For | Dead Zone |
|---|---|---|---|
| Cartesian Robot | Rectangular | CNC machines, packaging, precise assembly | None |
| Cylindrical Robot | Cylindrical | Station-to-station transfers | Yes |
| Spherical Robot | Partial Spherical | Welding, tasks requiring angular reach | Moderate |
| Revolute Arm Robot | Full Spherical | Complex assembly, painting, automotive production | Minimal |
This classification helps automation engineers match robot capabilities to specific industrial needs, ensuring efficiency and safety.
Conclusion: Why Work Envelopes Define Robotic Success
Robot arms may be the stars of the automation world, but their work envelopes are the invisible stages on which their performances play out. The shape, size, and restrictions of a work envelope determine how effective a robot is at its task—and whether it can even do the job at all.
By understanding the principles behind work envelopes—how they are shaped by mechanical design, how they evolve with task needs, and how they integrate with safety measures—engineers and manufacturers can build smarter, more productive automation systems.
As robots continue to evolve, mastering the geometry of their motion will remain a foundational skill in robotics, shaping everything from machine layout to software programming and system integration.
