Industrial robots once belonged exclusively to the domain of high-tech manufacturing giants. However, thanks to the democratization of engineering tools and fabrication techniques, even the most complex machines—like a seven-axis robotic arm—can now be constructed in a home workshop. This type of build, rich with moving parts, powerful motors, and sophisticated control logic, pushes the boundaries of DIY engineering and represents the intersection of creativity, technical knowledge, and perseverance.
Constructing a 7-axis robotic arm from scratch is far more than an exercise in assembly. It involves a deep understanding of motion control, mechanical design, electronics integration, and machining. This guide offers an end-to-end walkthrough of how such a project comes together, step by step. Whether you’re an engineer looking to stretch your skills or a maker driven by curiosity, this is your comprehensive guide to building a professional-grade robotic arm from the ground up.
Understanding the Foundation: What Is a 7-Axis Robotic Arm?

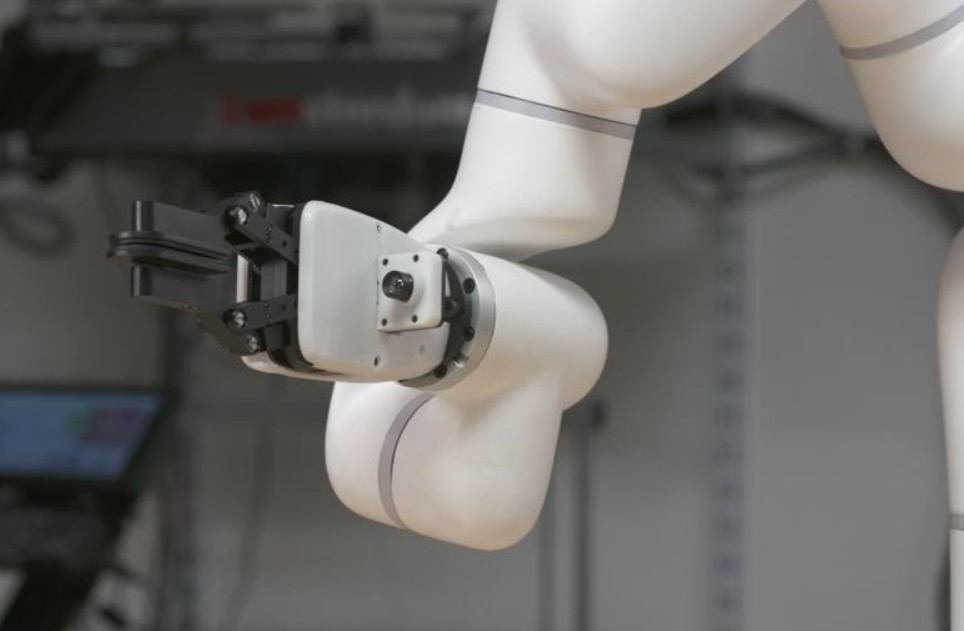

A 7-axis robotic arm is an articulated robot capable of extremely flexible movement. Unlike a standard 6-axis arm, which mimics the human shoulder, elbow, and wrist, a 7-axis model introduces an additional degree of freedom. This extra axis dramatically increases the arm’s ability to maneuver around obstacles and work in confined spaces, critical for real-world applications like automotive assembly and complex welding tasks.
Each “axis” corresponds to a joint powered by a motor, allowing rotational movement. A typical breakdown includes:
- Axis 1: Base rotation — Swivels the entire arm horizontally.
- Axis 2: Shoulder pivot — Moves the upper arm forward and backward.
- Axis 3: Elbow bend — Extends or retracts the lower arm.
- Axis 4: Wrist roll — Rotates the wrist assembly.
- Axis 5: Wrist bend — Pivots the wrist vertically.
- Axis 6: Wrist twist — Twists the wrist horizontally.
- Axis 7: Redundant motion — Enables reaching around obstacles by shifting the arm’s “elbow.”
This configuration grants the arm human-like dexterity and allows it to perform sophisticated manipulation tasks.
Starting with a Vision: The Design Phase
Every successful build begins with a clear understanding of objectives. Before touching any hardware, you must determine what the arm is expected to do. Defining your target payload, reach, speed, and precision requirements helps you make informed decisions about motor sizes, gear reductions, materials, and control strategies.
The design phase involves extensive 3D modeling and simulation. Powerful CAD software platforms play a central role in visualizing the robot before fabrication. They allow for parametric modeling of each joint and segment, accurate simulations of movement, and stress analysis under various loads. Complex parts like wrist joints and curved enclosures benefit from tools that simplify the creation of organically shaped, cast-like covers. These aren’t just for aesthetics—enclosures play an essential role in protecting internal components and improving usability.
Prototyping is an integral part of this stage. Before machining final parts in metal, 3D printing allows you to test fit, alignment, and functionality of critical assemblies. These prototypes can reveal unforeseen issues in spacing, cable routing, or motion interference, saving time and costly rework down the line.
Action Items:
- Payload Capacity: Determine how much weight the arm must lift. (E.g., a 30-pound load requires strong servos and joints.)
- Reach: Define maximum extension length—over 1 meter requires heavier-duty components.
- Speed and Acceleration: Specify how fast and agile the arm needs to be.
- Precision: Identify the required accuracy for tasks.
- Use CAD software to model joint ranges and clearances.
- Account for gearboxes, belts, and pulleys in the 3D model.
- Include mounting points for motors and sensors.
- Run stress simulations to ensure load-bearing reliability.
- Leverage tools to design complex, curvy enclosures with industrial aesthetics.
Prototyping is an integral part of this stage. Before machining final parts in metal, 3D printing allows you to test fit, alignment, and functionality of critical assemblies. These prototypes can reveal unforeseen issues in spacing, cable routing, or motion interference, saving time and costly rework down the line.
Action Items:
- Use PLA or ABS 3D-printed prototypes for early-stage validation.
- Test mechanical clearances and ergonomic design.
- Refine fit and motion before committing to final machining.
Choosing the Right Motors and Mechanical Systems
Motor selection is one of the most critical aspects of this build. A robotic arm experiences static loads, such as holding a position under gravity, and dynamic forces during acceleration, deceleration, and sudden directional changes. Each joint must produce enough torque to support downstream weights and maintain positional accuracy.
In this build, the base rotation uses a 400-watt AC servo motor with a gear reducer, which provides strong, stable rotation at the foundation. The shoulder joint, which bears the brunt of the payload when the arm is extended, is powered by a 1-kilowatt servo motor. The elbow receives a 750-watt motor, while the wrist and end-effector joints use motors ranging from 100 to 200 watts, chosen for their compact size and sufficient torque output.
Action Items:
- Base Motor: Use a 400W AC servo motor with gear reduction for foundational rotation.
- Shoulder Motor: Select a 1kW AC servo to handle extended payloads.
- Elbow Motor: A 750W servo provides mid-arm strength.
- Wrist Motors: Choose compact 100–200W servos for agile articulation.
- Include gear reduction at each joint to balance torque and speed.
Transmission systems include a mix of belt drives and gearboxes. Belts are carefully routed and tensioned to minimize slippage and maintain smooth torque delivery. Pulley sizes and belt lengths are calculated based on desired gear ratios and rotational speed, and tensioning mechanisms are incorporated into the design to make assembly and maintenance easier.
Action Items:
- Integrate belt tensioning mechanisms to reduce slippage.
- Optimize belt length and pulley size for proper gear ratios.
- Ensure precise alignment for smooth power transfer.
Machining and Fabrication
Fabricating the parts for the robot requires both precision and patience. Structural components are made from 6061 aluminum, selected for its strength-to-weight ratio and ease of machining. Critical surfaces are milled flat, and mounting holes are tapped to ensure alignment during assembly. Some parts require welding, especially where complex brackets must be permanently joined to frames or plates. Welding aluminum introduces its own set of challenges, such as controlling heat and managing warping, but the results are worth the effort for a rigid and reliable structure.
Action Items:
- Use 6061 aluminum for lightweight strength and corrosion resistance.
- Perform precision drilling, tapping, and milling to maintain tolerances.
- Apply TIG welding on joints requiring permanent strength, while preventing heat distortion.
For parts that are too complex to machine immediately, 3D printing serves as a valuable stand-in. This allows for testing the full mechanical assembly, verifying clearances, and preparing for final machining with complete confidence. It’s also a great way to model curved external covers that traditionally would be difficult to mill. These printed parts assist during the prototyping phase and enhance the final build’s visual appeal by concealing cables, bolts, and structural elements beneath smooth, professional-looking surfaces.
Wiring, Electronics, and Control Systems
After fabricating mechanical parts and mounting motors, the focus shifts to the electronics that bring the arm to life. Power distribution is a major consideration when running seven high-torque motors simultaneously. A well-designed system includes a robust power supply, circuit breakers for overcurrent protection, and reliable grounding to prevent faults.
Action Items:
- Use a high-capacity power supply for all motors.
- Install circuit breakers for electrical safety.
- Ensure proper grounding throughout the system.
Each servo motor is driven by a dedicated driver that translates control signals into precise motion. These drivers communicate with a central controller, often running custom firmware or using a real-time motion control platform. Synchronizing multiple motors is a delicate process that requires tuning feedback loops, such as PID controllers, to achieve smooth, coordinated movement across all axes.
Action Items:
- Connect each servo to its own driver.
- Use either custom-built or off-the-shelf CNC controllers.
- Tune PID settings to improve response time and minimize oscillation.
Limit switches are installed at key points on each joint to define safe travel limits and provide reference points during homing procedures. These are wired into the control system to prevent over-rotation or mechanical interference. Emergency stop systems are also essential, especially when testing high-power systems, and must be easily accessible and immediately responsive.
Action Items:
- Mount physical limit switches on each axis.
- Use them for both motion boundaries and zero-point calibration.
- Install emergency stop buttons for instant shutdown in emergencies.
The Assembly Process
Assembling the robotic arm is a staged process, beginning with the base and progressing outward. The base motor is mounted and tested for smooth rotation. The shoulder assembly follows, incorporating the high-power servo and its belt or gear system. Each segment is carefully aligned and secured, with temporary fasteners used to hold parts during test fits.
Action Items:
- Begin with base motor installation and testing.
- Assemble and align the shoulder and elbow joints.
- Carefully route belts and attach wrist joints.
- Thread and organize wiring through internal channels or external trays.
The elbow and wrist joints are then connected, with belts routed and tensioned according to design specifications. As the build progresses, more attention is paid to cable management, with temporary zip ties giving way to planned cable trays or drag chains. Cables must be routed to accommodate the full range of motion without introducing tension or pinch points.
Action Items:
- Use zip ties during early testing stages.
- Finalize with flexible cable carriers for dynamic joints.
- Provide strain reliefs and use shielded cables to mitigate EMI.
Final assembly includes installing all covers, adding lifting points for transport, and securing all fasteners with thread-locking compounds to ensure vibration resistance.
Before full-speed operation is attempted, the robot undergoes low-speed functional tests. Each joint is moved through its expected range to identify binding, misalignment, or interference. Motors are monitored for heat and noise, and torque output is adjusted where needed. Motion profiles are refined to ensure coordinated acceleration and deceleration.
Action Items:
- Power up each axis individually to check movement.
- Test limit switches and E-stop functionality.
- Run low-speed diagnostics to catch misalignments or resistance.
Testing, Tuning, and Safety
Before full-speed operation is attempted, the robot undergoes low-speed functional tests. Each joint is moved through its expected range to identify binding, misalignment, or interference. Motors are monitored for heat and noise, and torque output is adjusted where needed. Motion profiles are refined to ensure coordinated acceleration and deceleration.
Load testing is performed by extending the arm with simulated payloads. For example, a one-meter reach with a 30-pound load places immense torque on the shoulder and base joints. This test verifies that the system holds the weight statically and accelerates and decelerates without oscillation or strain. Observing how the structure handles these forces is crucial for verifying real-world performance.
Action Items:
- Tune acceleration/deceleration profiles for joint stability.
- Synchronize multi-axis motion to avoid jerky transitions.
- Extend arm with real payloads, and monitor motor temperatures and frame stress.
- Adjust the control to handle payload inertia safely.
Only once all safety features are validated—including emergency stop functionality, working limit switches, and reliable power shutdown—should the robot be operated at full speed.
Action Items:
- Enclose all moving parts to eliminate pinch points.
- Install the final motor and belt covers.
- Conduct full emergency stop drills before operational use.
Final Thoughts: Engineering Without Limits
The construction of a 7-axis robotic arm from scratch is a remarkable achievement, especially when undertaken outside of a formal engineering environment. It showcases not only what’s technically possible but also what becomes creatively possible when someone blends curiosity with determination.
This project combines electrical engineering, mechanical design, software development, and hands-on fabrication. Every decision, from motor selection to belt routing, reflects the iterative nature of real-world engineering. It also reflects a powerful truth about modern innovation—that it no longer lives solely within corporate labs. It thrives in home workshops, garage maker spaces, and anywhere people dare to build what they dream.
For those inspired to follow in these footsteps, this guide offers both a roadmap and a challenge: start building, start learning, and discover just how far you can go.
