High-definition maps for autonomous driving


The pursuit of creating and using maps for navigation is as old as civilization itself. Ancient maps, such as a clay tablet from around 600 BC depicting the region surrounding Babylon, and Ptolemy’s Geographia from Roman Egypt, illustrate the human desire to understand and navigate the world. The Renaissance period, along with the invention of the printing press and the discovery of the Americas, further advanced geographic and cartographic knowledge.

With the advent of modern satellite systems and imaging technology, digital maps emerged, revolutionizing how we perceive and navigate the world. Digital maps, such as Google Maps and OpenStreetMaps, integrated with GPS technology, have become indispensable tools in everyday life, facilitating navigation and routing. However, as the demands of automated driving systems grew, the need for more precise and detailed maps led to the development of high-definition (HD) maps.

Defining High-Definition Maps

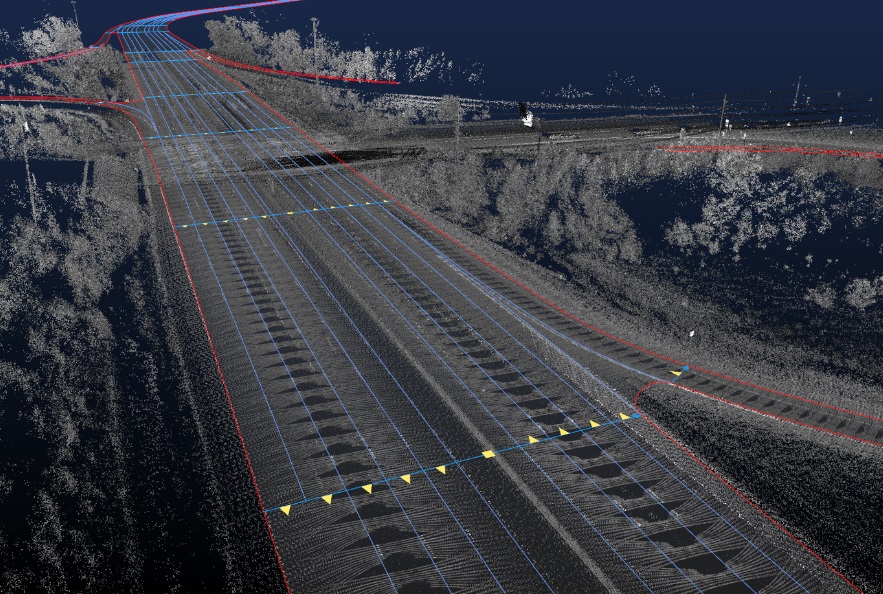

High-definition maps, or HD maps, represent a significant advancement in digital mapping technology, specifically designed to meet the needs of cooperative, connected, and automated mobility (CCAM). Unlike traditional digital maps, HD maps offer centimeter-level precision and lane-level semantic information. They serve as virtual sensors, aggregating data from physical sensors like LiDAR, cameras, GPS, and IMU to build a comprehensive model of the road environment.

HD maps not only depict road geometry but also include live updates on road participants, weather conditions, construction zones, and accidents. This holistic representation of the digital infrastructure is crucial for the deployment of autonomous vehicles, ensuring they function accurately and safely.

Benefits of High-Definition Maps

Enhanced Vehicle Localization and Perception

One of the primary benefits of HD maps is their ability to improve vehicle localization. By matching real-time sensor data with pre-mapped information, autonomous vehicles can achieve precise positioning. This accuracy is vital for executing complex driving maneuvers and navigating challenging environments.

HD maps also enhance perception by providing detailed information about the road environment. This includes the location and characteristics of lanes, intersections, traffic signs, and lights. Such comprehensive data allows autonomous vehicles to recognize and classify these features accurately, improving their ability to understand and react to the driving context.

Improved Safety and Efficiency

HD maps contribute significantly to the safety and efficiency of automated driving systems. With detailed lane-level information, vehicles can plan efficient and collision-free routes, respecting traffic rules and road conditions. This capability is essential for safe lane-keeping, adaptive cruise control, and other advanced driver assistance systems (ADAS).

Moreover, HD maps can predict the likely paths and movements of other road users, such as pedestrians and other vehicles. This predictive ability enhances the vehicle’s situational awareness, allowing it to anticipate and avoid potential hazards.

Robustness in Diverse Conditions

Unlike physical sensors that can be affected by environmental conditions, HD maps remain reliable if kept accurate and up-to-date. This robustness makes them invaluable in scenarios where visibility is poor, such as during heavy rain, fog, or snow. HD maps provide a stable source of information that complements sensor data, ensuring continuous and safe vehicle operation.

Challenges in Building and Maintaining HD Maps

Data Collection and Processing

Creating HD maps is a resource-intensive process, involving the collection of detailed environmental data using various sensors. This process is labor-intensive and time-consuming, requiring precise temporal synchronization to avoid data misalignment. The integration and alignment of data from multiple sources to build an accurate and up-to-date map are complex tasks that demand sophisticated algorithms and processing capabilities.

Data Communication and Maintenance

Efficient data communication is crucial for transferring collected data to processing centers and subsequently to autonomous vehicles. The sheer volume of data generated by mapping vehicles poses a significant challenge in terms of real-time handling and processing. Additionally, maintaining the accuracy and relevance of HD maps requires continuous updates to reflect changes in the road environment, such as construction activities and road blockages.

Security, Privacy, and Cost

Ensuring data security and privacy is a major concern, given the sensitive nature of information contained in HD maps. Protecting this data from misuse and unauthorized access is essential. Furthermore, the high cost of mapping, involving expensive sensors and a large fleet of mapping vehicles, presents a significant barrier. While mapping with consumer-grade sensors is possible, it necessitates advanced mapping algorithms to achieve the desired level of precision.


High-definition maps are a critical component in the advancement of cooperative, connected, and automated mobility. They provide the detailed and precise information necessary for autonomous vehicles to navigate safely and efficiently. Despite the significant challenges in building and maintaining these maps, their benefits in enhancing vehicle localization, perception, and overall driving safety make them indispensable for the future of automated mobility. Continued research and development in this field are essential to overcome current challenges and unlock the full potential of HD maps in transforming transportation systems.
